Business Jet – Geometry

£150.00

Full scale, solid volume geometry of a super-midsize business jet.

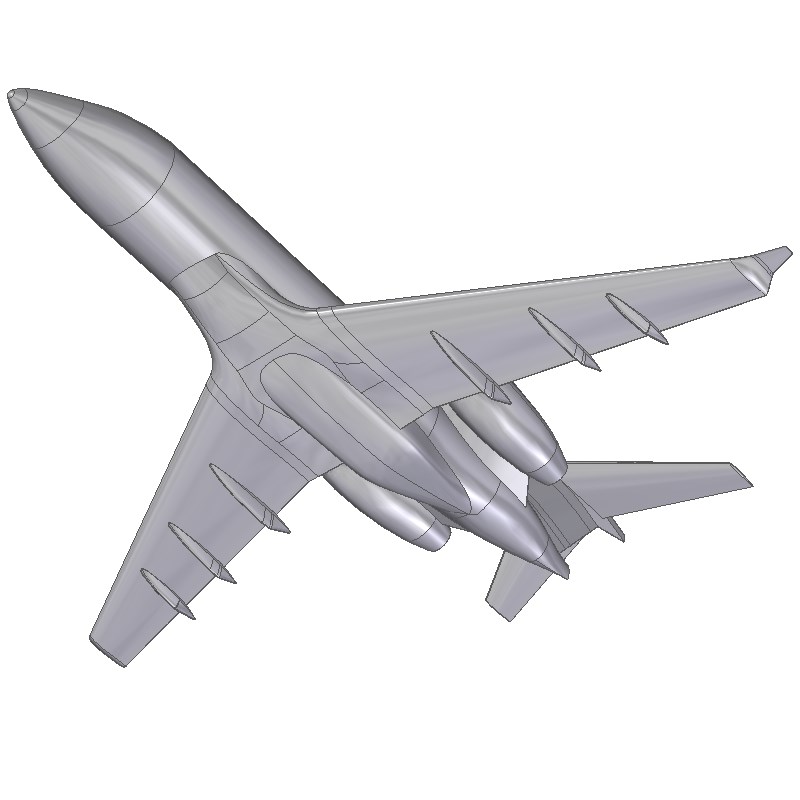

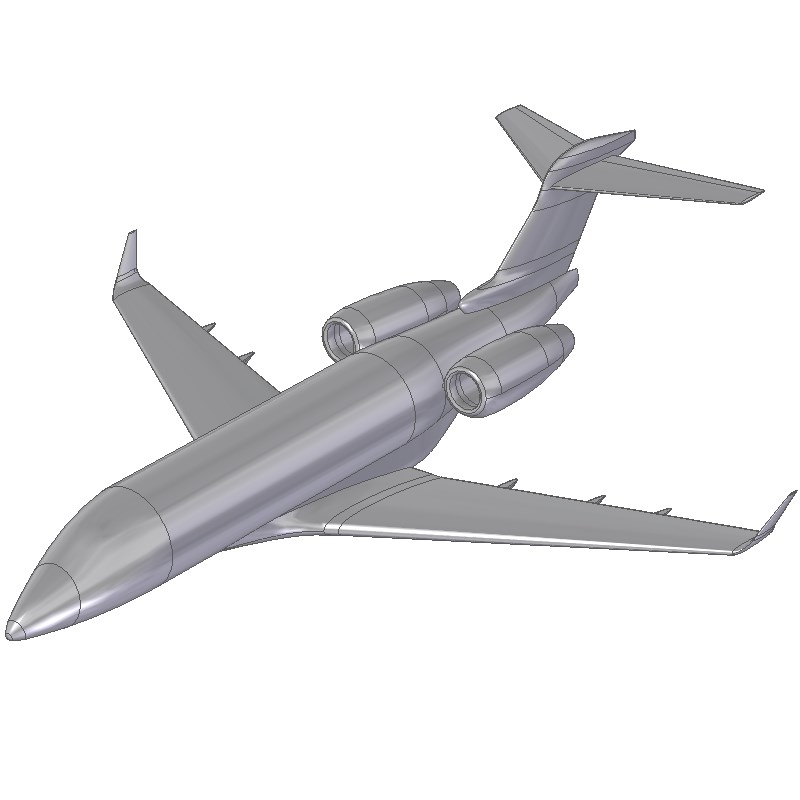

The aircraft 3D CAD geometry is a single, editable volume. It contains the fuselage, wing, tail, nacelle and pylon. Add a suitably sized ambient air volume to make it CFD ready. Since it is a volume model, you can easily add external features like antennas to analyse their effect.

Use it for aerodynamic CFD simulations to practice meshing techniques and the application of boundary condition systems.

Download package content:

  • STEP (.stp) solid model
  • Parasolid (.x_t) solid model
  • Stereolitography (.stl)
  • SC/Tetra geometry input (.mdl)
  • Download file size: 39MB
CONTINUE SHOPPING
SKU: FCTCAD_WS_BusinessJet_1.0 Category:

Business Jet Geometry

Full scale, super-midsize business jet geometry. Use the model for aerodynamic CFD simulations to practice meshing techniques and application of boundary condition systems. To make it CFD ready, add the ambient air volume to the model.

The geometry is provided in STEP (.stp) and Parasolid (.x_t) Stereolithography (.stl) and mdl (SC/Tetra specific) formats in a zip file to download. The aircraft is a single part with fuselage, wing with fairings, tail, nacelle and pylon.

We have created the original parametric model in Solid Edge in an MMKS (millimetre, kg, second) unit system. The 3D CAD geometry is based on the structural repair manual of a similar aircraft. Please note, that because no accurate external shape information is available from any aircraft OEM, this business jet model is not an accurate, full representation of a flight capable airplane. However, we took a lot of care to make the model a good subject for CFD simulation excercises.

Model properties:

  • In STEP (.stp), Parasolid (.x_t), Stereolithography (.stl) and SC/Tetra model input (.mdl) file formats,
  • A single part model having the fuselage, tail, pylon, nacelle and wings with flap fairings,
  • The model’s coordinate system origin is at Fuselage Station (FS) 0.0,
  • Full 1:1 scale solid volume business jet model, can be halved for a symmetric arrangement, or can be further detailed with antennas or other attachments.
  • Length: 20976.6 mm (68 ft 9 in), Wingspan: 19485.2 mm (63 ft 11 in), Height: 6121.5 mm (20 ft 1 in). Check your units when scaling.
  • Add ambient air volume geometry to make it CFD simulation ready.
  • Download file size is 39MB. When extracted, the stl file is the largest with 138MB, so make sure you have suitable bandwith and storage capacity.

Any questions?

If you have any questions or comments about this model, we would like to hear it. Please get in touch by sending an email to office@cfdengineering.co.uk.
